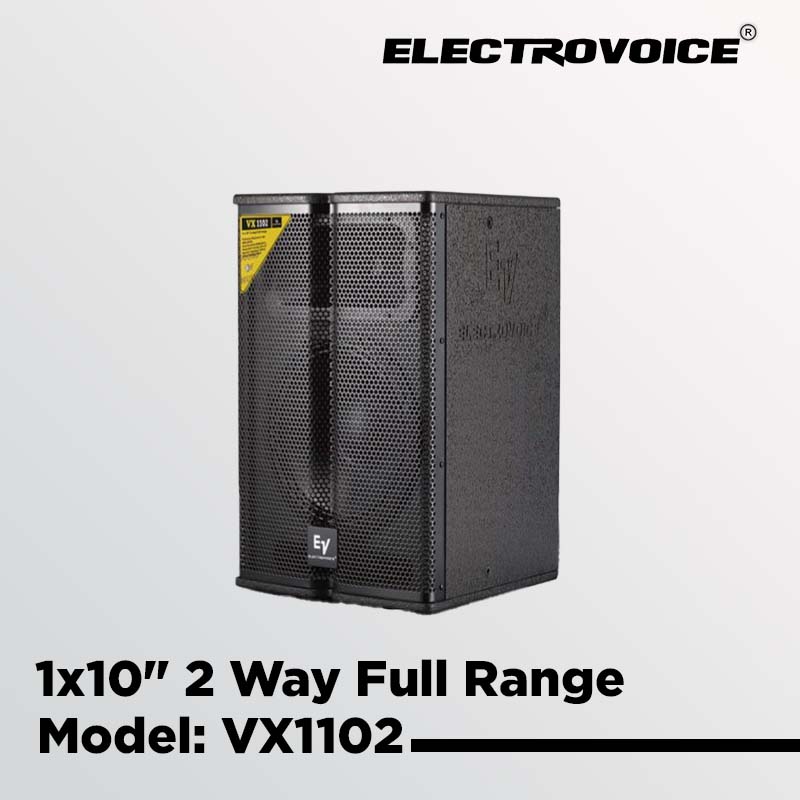

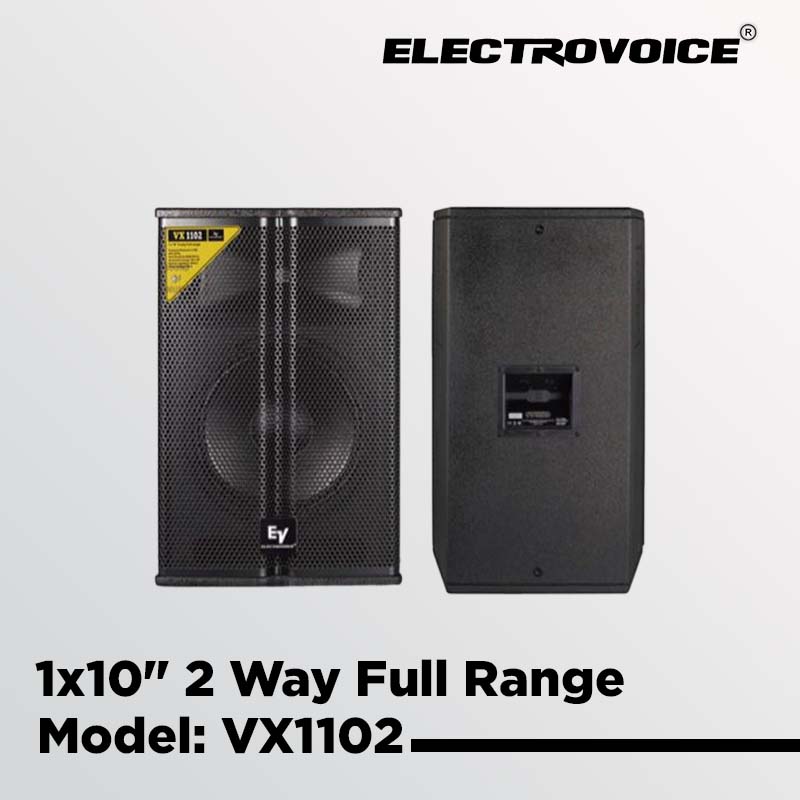

VX1102 1×10″ 2 Way Full Range

Technical specifications

• Frequency response (-3 DB): 50HZ-22KHZ
• Frequency range (-10 DB): 49HZ-22KHZ
• Axial sensitvity: 90DB (1W/1M)
• Max calculated SPL: 127DB
• Horizontial coverage: 90*OR 60*
• LF transducer: EVS-10M, 10IN (1 56MM) driver
• HF transducer: DH-1C 1,35 IN (35MM) diaphragm compression driver
• Nominal impedance: 80HMS
• Power handi ing: 300W continuous, 1200W peak
• Dimensions (H*W*D): 550MM*310MM*330MM
• Net weight: 14kg
